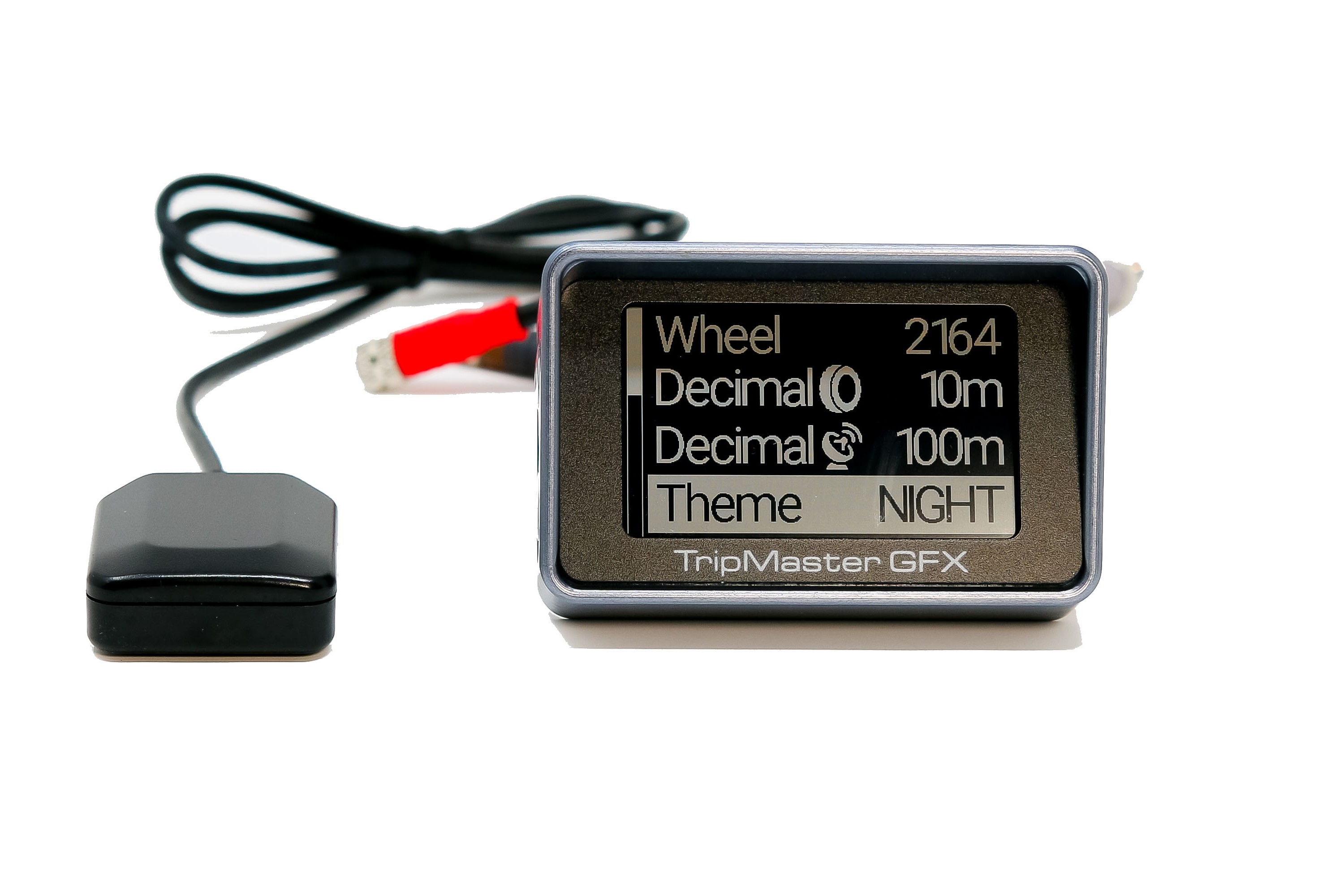

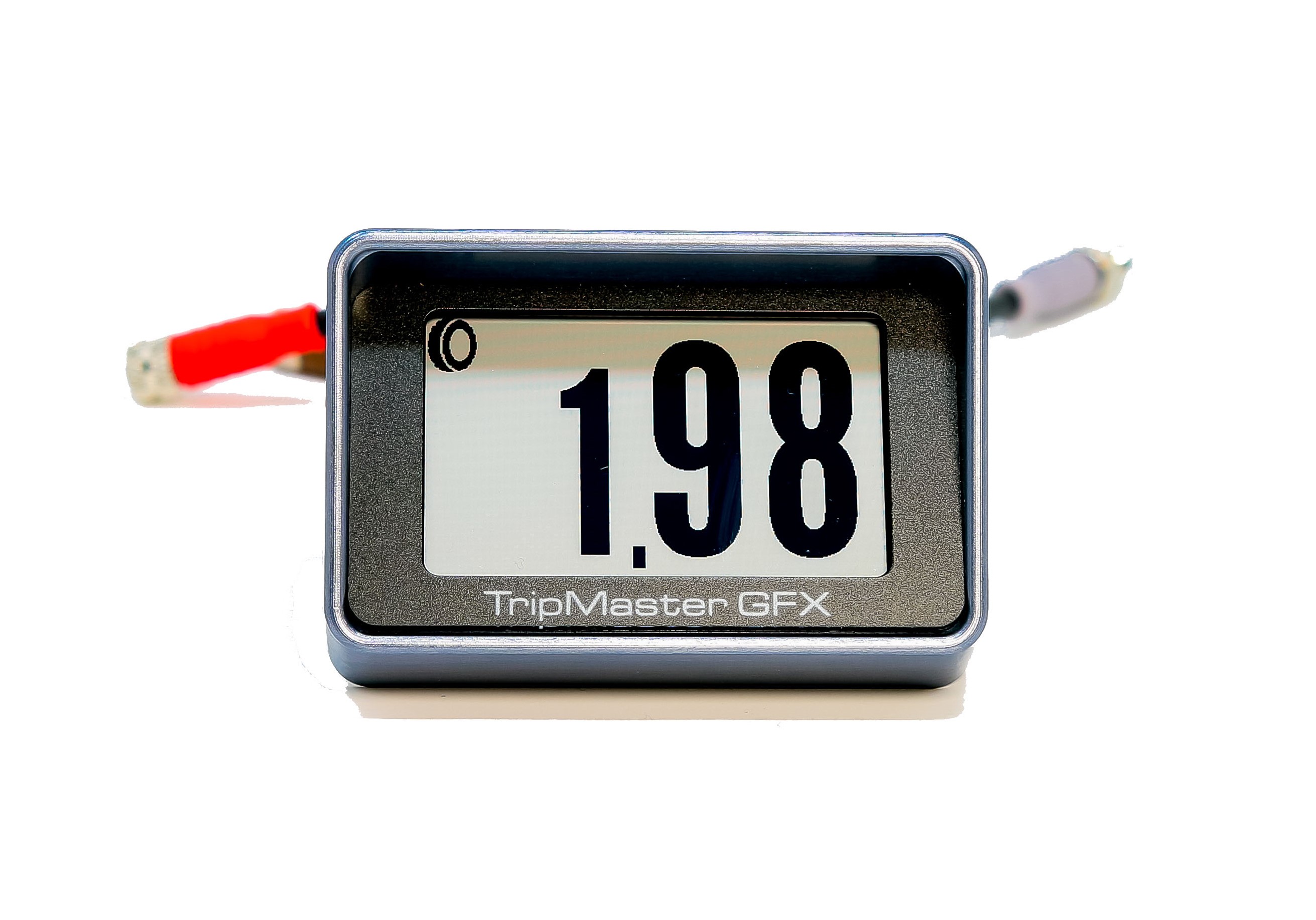

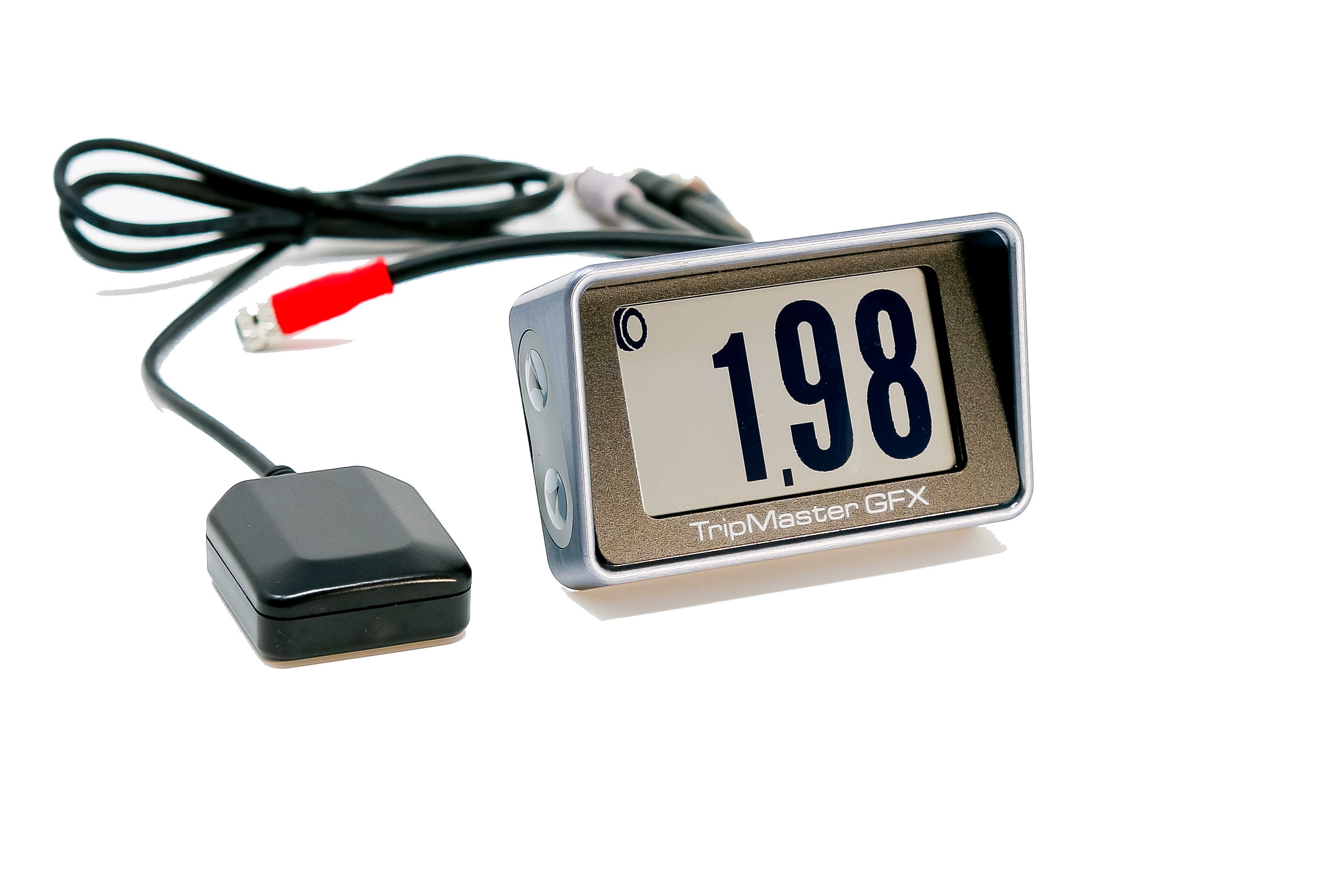

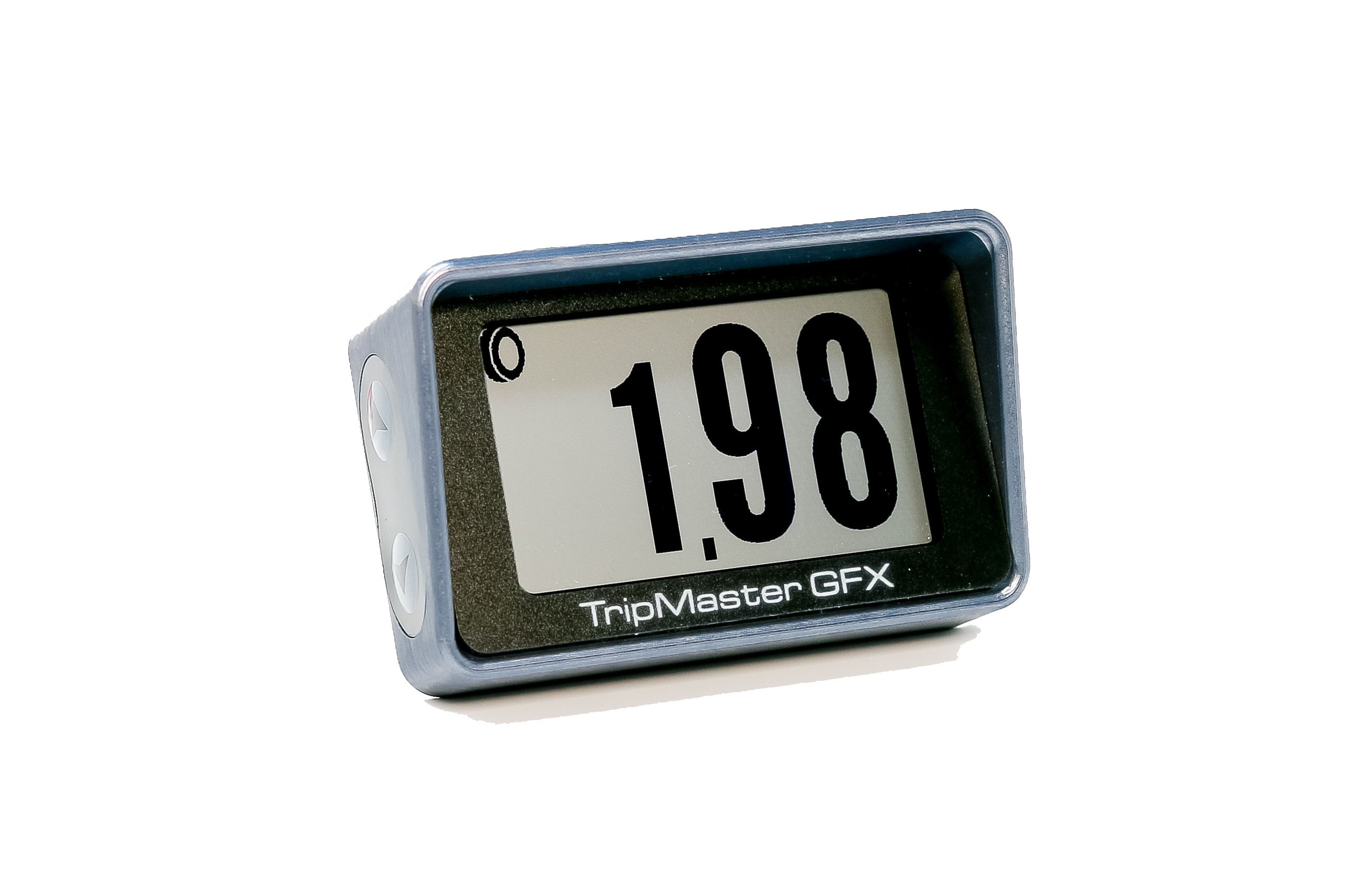

TripMaster GFX

Hardware:

• High contrast Transflective graphics LCD
  • 2.7” diagonal
  • 400x240 pixels, 172ppi
  • LED backlight
  • 180° viewing angle in X+Y axis
• Perfect readability under bright sunlight and dust
• CNC machined aluminium casing anodised in gun-metal-grey
• Integrated sun-visor
• 2 flush click-feedback membrane buttons on the left side for easy pressing even when wearing gloves
• Matte framed lens to limit glare
• Internal Lithium-Polymer self-charging backup battery
• 4 colour-coded cables
• Water- and dustproof design
• Smaller footprint than previous TripMaster XL3
• Plug and Play with old cables, accessories and mounting positions

Software:

• Wheel sensor + GPS compatibility
• Wheel Size adjustable in millimetres
• Self-calibrating wheel size
• GPS compensation factor adjustable between -10% and +10%
• 12x modes in total, individually configurable
  • 2x trips from wheel and GPS viewable in 10m or 100m resolution
  • 2x speed displays from wheel and GPS
  • Statistics for maximum and average speeds
  • CAP heading from GPS
  • Atomic clock from GPS with UTC offset
  • Stage moving timers
  • Combined screens for Trip, Speed and CAP together

• Intuitive settings menu accessible from any mode
• Transition pages with symbols and icons when switching between modes
• Lifetime and resettable oil odometers
• Invertible LCD image with dim backlight for pleasant reading in the dark
• Software updateable via USB
• Connectable with Garmin GPS devices for using route/track data to show arrow and distance to waypoints

Included:

• TripMaster GFX
• Stainless-steel Wheel Sensor
• GPS Antenna
• Neodymium Magnet
• Power Cable
• Mounting Accessories
